Composite Strapping

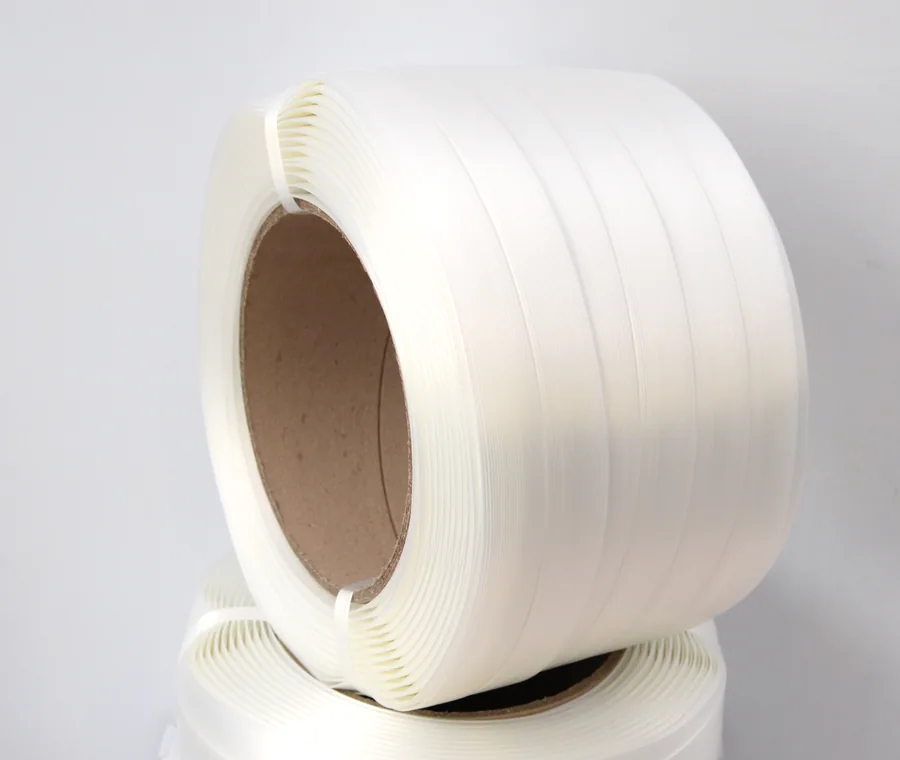

Composite Cord Strapping
Polyester corded strap with a protective polymer coating, high retained tension and excellent shock absorption.
Minimum order20 cartons
Lead time10-15 days
MaterialsHigh-tenacity polyester
Product category
Composite Strapping
FOCUSOURCE composite cord strapping combines high-tenacity polyester yarns with a protective coating to secure demanding loads. Select width and strength according to cargo weight, handling and transport conditions.
Where it is used
Applications
- Palletized cartons and drums
- Steel pipes, profiles and coils
- Timber, machinery and export cargo
Why choose this range
Key benefits
- High retained tension with shock absorption
- Lightweight, flexible and easy to handle
- Multiple widths and breaking-strength options
Available products
Composite Strapping products and specifications
View product details
Product data
Technical Specifications
| Item Code | Width | Thickness | Type of Yarn | Min. Linear Breaking Strength | Min. System Breaking Strength | M/Coil | Coils/Box |
|---|---|---|---|---|---|---|---|
| CS40 | 13mm | 0.85±0.05mm | Flat Yarn | 300 daN | 480 daN | 1100m | 2 Coils/Box |
| CS50 | 16mm | 0.85±0.05mm | Flat Yarn | 425 daN | 680 daN | 850m | 2 Coils/Box |
| CS60 | 19mm | 0.9±0.1mm | Flat Yarn | 475 daN | 760 daN | 600m | 2 Coils/Box |
| CS65 | 19mm | 0.9±0.1mm | Flat Yarn | 625 daN | 1000 daN | 500m | 2 Coils/Box |
| CS85 | 25mm | 1.0±0.1mm | Flat Yarn | 785 daN | 1256 daN | 500m | 2 Coils/Box |
| CS105 | 32mm | 1.1±0.1mm | Flat Yarn | 1500 daN | 2400 daN | 230m | 2 Coils/Box |
| CS89 | 25mm | 1.3±0.1mm | Twisted Yarn | 925 daN | 1480 daN | 400m | 2 Coils/Box |
| CS106 | 32mm | 1.3±0.1mm | Twisted Yarn | 1625 daN | 2600 daN | 230m | 2 Coils/Box |
Questions & answers
Frequently asked questions
How do I select a composite strap width?
Match the strap's system strength to the load, transport movement and lashing configuration. Share cargo details with us for a recommendation.
Can composite cord strapping be used outdoors?
It is suitable for many export and industrial applications. Confirm exposure duration, weather conditions and required protection when requesting a quotation.
Which buckle should I use with the strap?
Choose a buckle compatible with the strap width and lashing method. Wire buckles are commonly paired with composite cord strapping.
Need help selecting?
