Product category
The V-4110 vacuum metallized polyester film is a reflective laminated roll material combining VMPET, PE and woven polyester layers. Review the listed technical properties and confirm application requirements with the supplier.
Where it is used
Why choose this range
Available products
Vacuum Metallized Polyester Film

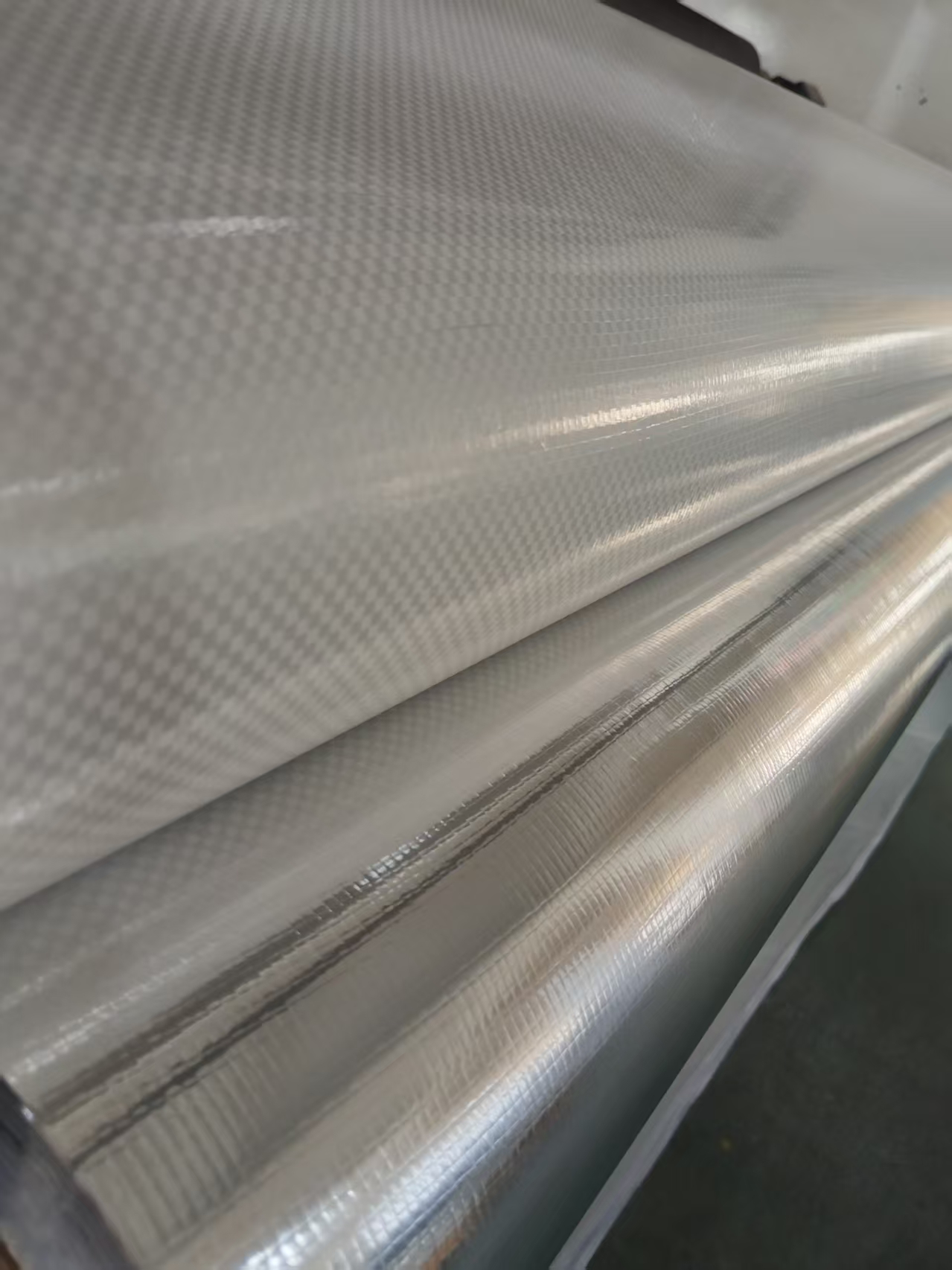

Reflective VMPET laminated film supplied in roll form. The V-4110 construction combines VMPET, PE and a woven polyethylene reinforcing layer for packaging and protective covering applications.
Product data
| Specification | Value |
|---|---|
| Product name | VMPET + PE + PE woven + PE |
| Item code | V-4110 |
| Structure | VMPET + PE + PE woven + PE |
| Density | 110 g/m² |
| Thickness | 120 µm |
| Roll size | 2 m × 100 m per roll |
| Tensile strength (MD) | 250 N/25 mm |
| Tensile strength (TD) | 180 N/25 mm |
| Tear strength | 450 N |
| Thermal conductivity | 0.08 W/(m·K) |
| Water vapour permeability | 2.00 ng/NS |
| Water absorption by volume | 1.00 g/m² |
| UV resistance | Excellent |
| Operating temperature range (without adhesive) | −20 to 80 °C |
| Net weight | 22 kg/roll |
| Packing | Roll + pallet |
Questions & answers
The supplied specification lists VMPET + PE + PE WOVEN + PE. Confirm layer construction for the final purchase specification.
The listed size is 2 m x 100 m per roll, with a net weight of 22 kg per roll.
The source specification's permeability units need supplier confirmation before engineering use. Request the test method and complete unit definition.
